gears // module // class
Gear Machining
Gear machining performed within controlled technological parameters. Gear tooth precision ensures stable drive system operation.
- mechanical processing of gears, gear racks, and involute splines
- hobbing method gear cutting - module 0.5-5.0 mm, class 8-7, maximum diameter Ø 300 mm
- gear grinding (REISHAUER) - module 0.5-6.0 mm, class 7-6, maximum diameter Ø 315 mm
- internal gear cutting using the Fellows method
- manufacturing of gear racks
- manufacturing of involute connections
process // scope // result
Service description
Our service scope includes:
- mechanical processing of gears, gear racks, and involute splines
- hobbing method gear cutting - module 0.5-5.0 mm, class 8-7, maximum diameter Ø 300 mm
- gear grinding (REISHAUER) - module 0.5-6.0 mm, class 7-6, maximum diameter Ø 315 mm
- internal gear cutting using the Fellows method
- manufacturing of gear racks
- manufacturing of involute connections
- manufacturing of sprockets
- manufacturing of pulleys
The result is toothed geometry with controlled parameters, ready for operation in demanding power transmission systems.
parameters // size // tolerance
Technical scope
| Machining type | Max. module | Ø max | b face width | Accuracy class | Notes |
|---|---|---|---|---|---|
| Hobbing | |||||

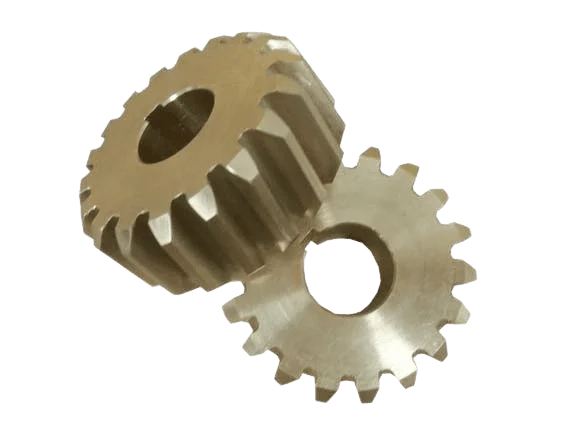

| > gears | 0,5 - 5 | 300 | 200 | 8 - 7 | |

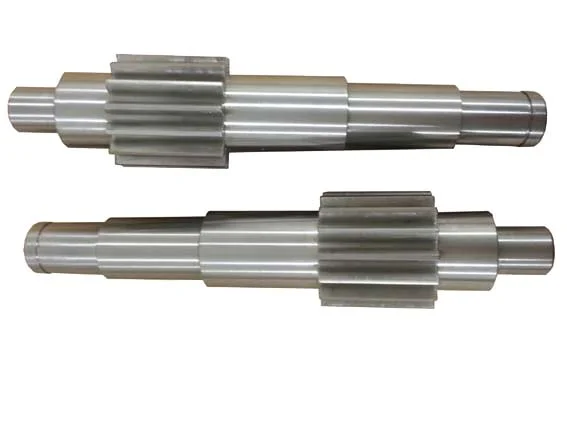

| > gear shafts | 0,5 - 5 | 300 | 250 | 8 - 7 | |
| Grinding | |||||
| > gears | 6 | 315 | 145 | 7 - 6 | |
| > gear shafts | 6 | 90 | 350 | 7 - 6 | |
| Gear shaping | |||||
| > external | 1 - 4,5 | 300 | 9 - 8 | metoda Fellowsa | |
| > internal | 1 - 4,5 | 225 | 9 - 8 | metoda Fellowsa | |

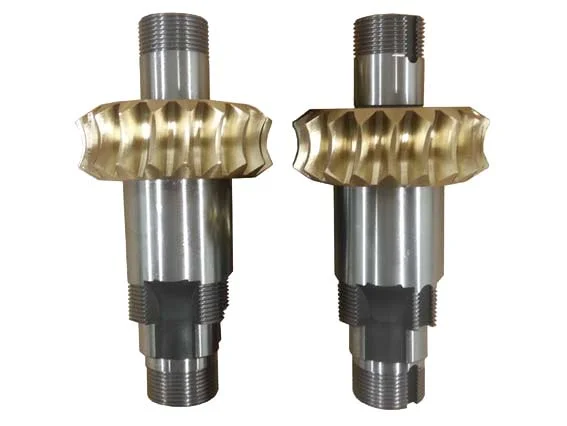

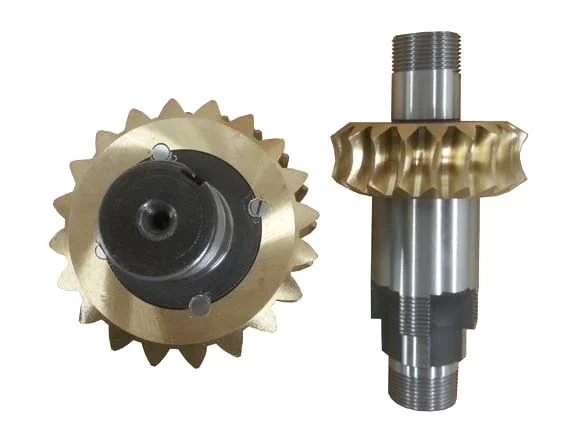

| Worm gears | |||||
| > | 1 - 5 | 250 | 9 - 8 | ||
work // shop floor
From the shop floor
scope // quote // cooperation
Service FAQ
Short answers to common buying questions - no fake ratings or empty blocks.
Does FMT machine gears?
Yes - gear machining in cooperation. Parameters (module, profile, material) are agreed from technical documentation.
How do I order gear machining?
Attach the drawing / gear specification in the form on this page - we tag the enquiry for gear machining.
What is Gear Machining in the FMT offer?
Gear Machining is an industrial service delivered at the FMT plant in Wierzchosławice - scope and lead time follow your part / process description in the form on this page.
How do I start an enquiry about Gear Machining?
Fill the form on this page (part, material, quantity / scope). The enquiry reaches FMT production tagged with this service.
Is FMT a manufacturer or only a job shop?
FMT is a Polish machine-tool manufacturer (TUJ, LZ, RUP) with its own plant and also offers industrial / job-shop services from the same site.
cooperation // quote // part
Machining enquiry: Gear Machining
Describe the part and requirements. The enquiry goes to production with this service marked.
