grinding // shafts // faces
Grinding Services
Precision grinding based on strict process control and advanced machinery. We process shafts, bores, surfaces, and gears within tight tolerances.
- maximum ground taper angle
- 60°

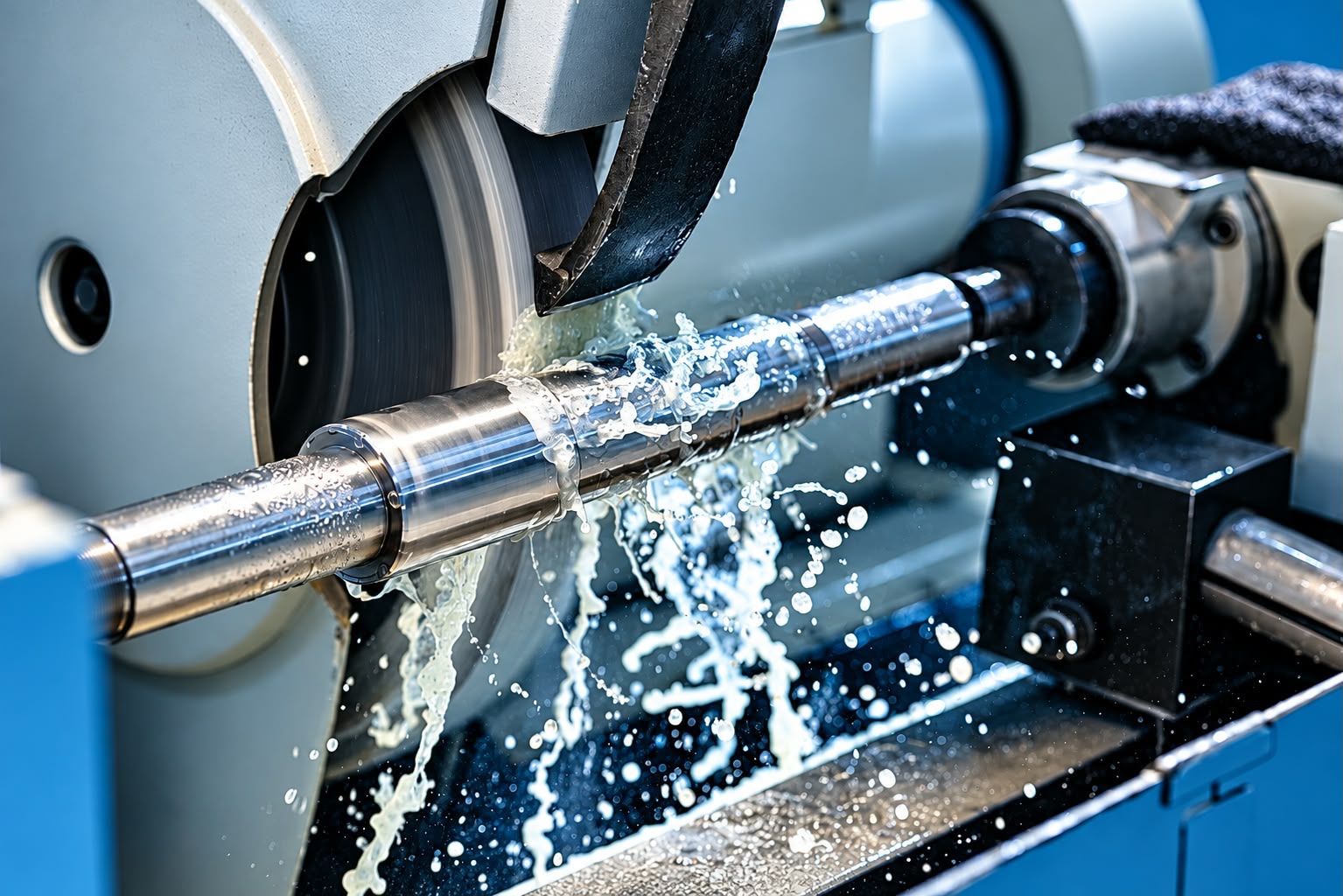

- cylindrical grinding of shafts - maximum diameter Ø 450 mm, length 2000 mm
- internal grinding of bores - maximum diameter Ø 350 mm, maximum length 400 mm
- grinding of machine tool beds - maximum length 4000 mm
- spline shaft grinding - length up to 1200 mm, diameter range Ø 11-100 mm

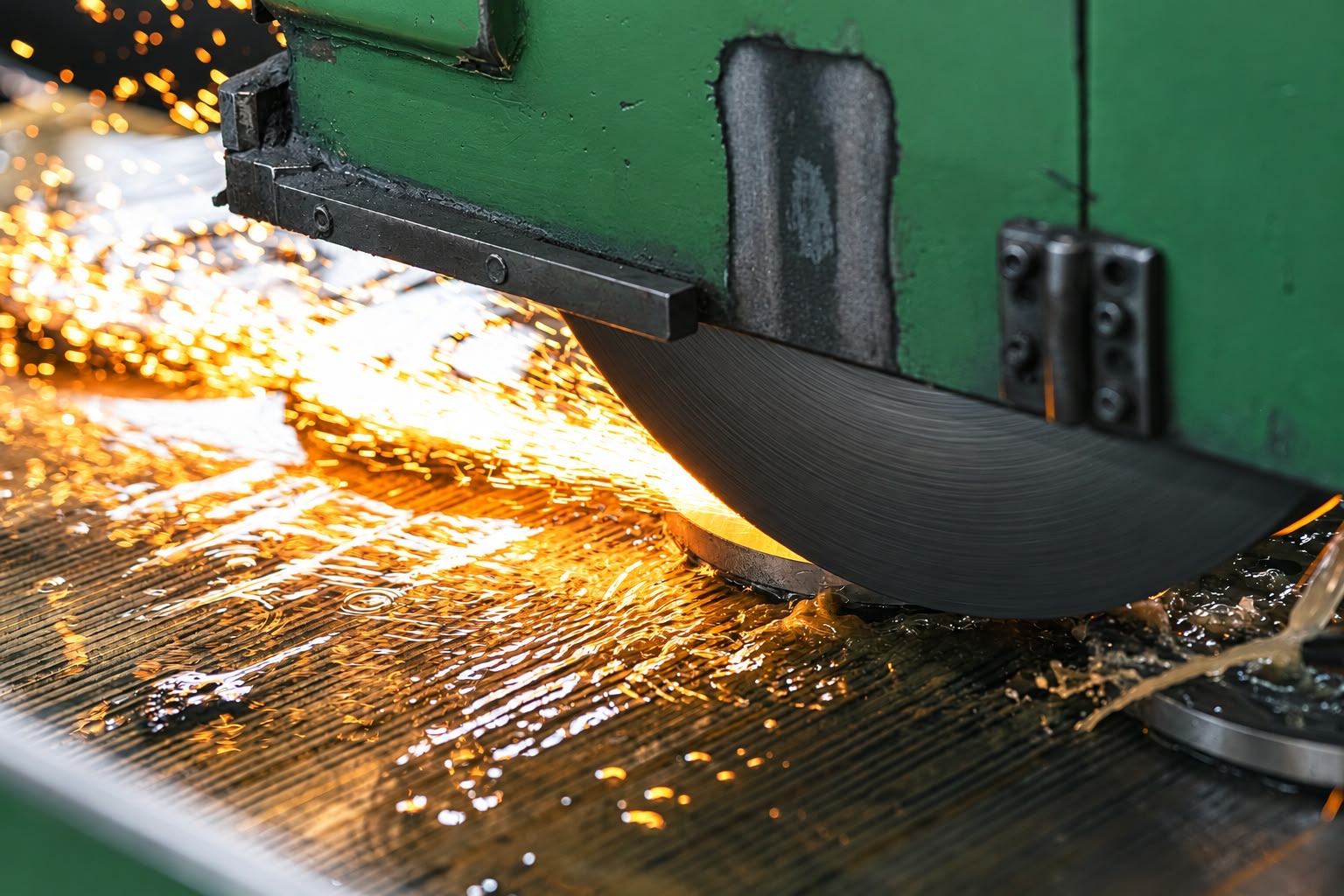

- surface grinding - length 3000 mm, width 600 mm, height 800 mm
- gear grinding - maximum diameter Ø 320 mm
process // scope // result
Service description
We provide grinding services as the final machining stage, determining dimensional accuracy, surface quality, and component repeatability. The process is carried out with strict control over geometry and operating parameters.
Our service range includes:
- cylindrical grinding of shafts - maximum diameter Ø 450 mm, length 2000 mm
- internal grinding of bores - maximum diameter Ø 350 mm, maximum length 400 mm
- maximum ground taper angle: 60°
- grinding of machine tool beds - maximum length 4000 mm
- spline shaft grinding - length up to 1200 mm, diameter range Ø 11-100 mm
- surface grinding - length 3000 mm, width 600 mm, height 800 mm
- gear grinding - maximum diameter Ø 320 mm
The result is a surface with controlled accuracy and parameters ready for operation in demanding industrial conditions.
work // shop floor
From the shop floor
scope // quote // cooperation
Service FAQ
Short answers to common buying questions - no fake ratings or empty blocks.
What grinding does FMT provide?
Precision grinding (incl. shafts and bores) in cooperation - based on RUP-line experience and the plant grinder fleet.
What data do you need for a grinding quote?
Material, dimensions, tolerances and finish - ideally with a drawing. The service-page form routes the enquiry to production.
What is Grinding Services in the FMT offer?
Grinding Services is an industrial service delivered at the FMT plant in Wierzchosławice - scope and lead time follow your part / process description in the form on this page.
How do I start an enquiry about Grinding Services?
Fill the form on this page (part, material, quantity / scope). The enquiry reaches FMT production tagged with this service.
Is FMT a manufacturer or only a job shop?
FMT is a Polish machine-tool manufacturer (TUJ, LZ, RUP) with its own plant and also offers industrial / job-shop services from the same site.
cooperation // quote // part
Machining enquiry: Grinding Services
Describe the part and requirements. The enquiry goes to production with this service marked.
