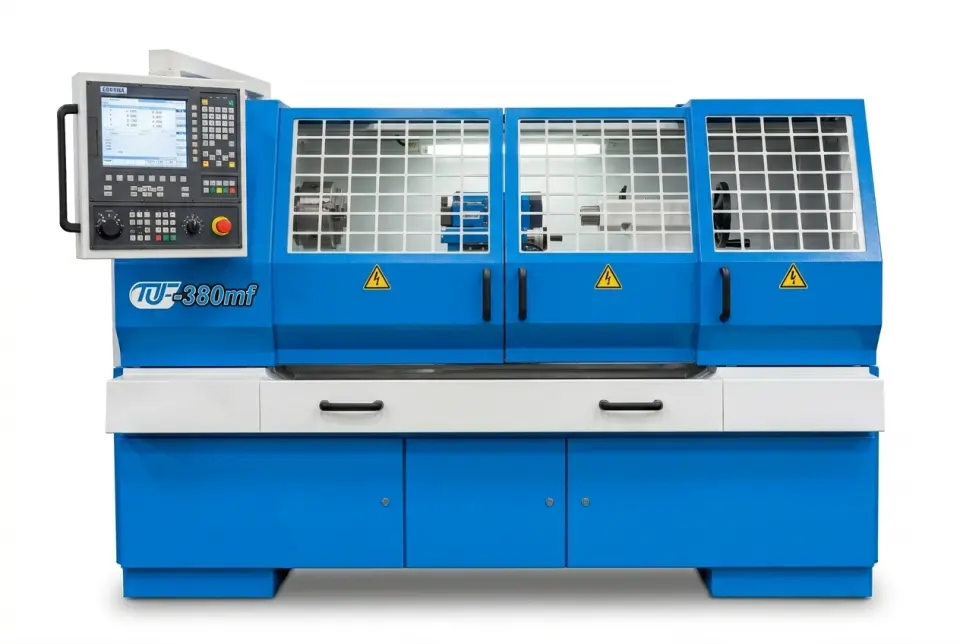

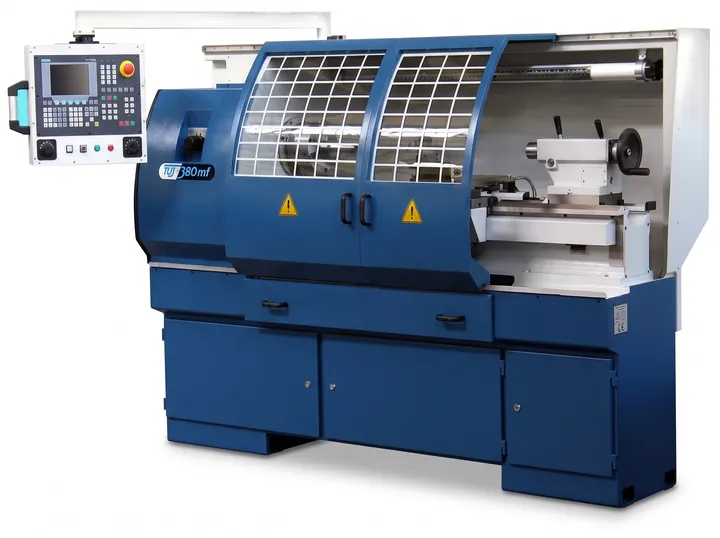

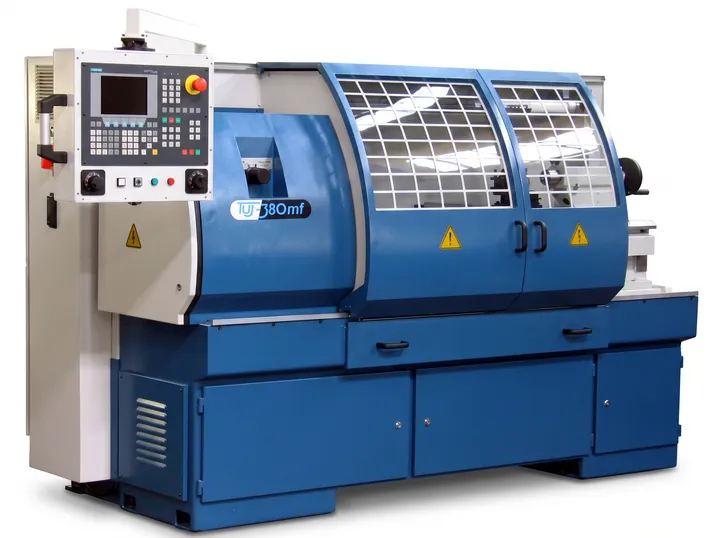

TUJ-380MF

precision // machining // fmt standard

TUJ-380MF

construction // process

Technical description

The TUJ-380 MF lathe is designed for typical turning operations while maintaining high efficiency and machining accuracy. High motor power and the use of ball screws in the carriage drives ensure stable and precise machine operation.

The main drive is transmitted via a belt drive using a 7.5 kW electric motor controlled by a frequency inverter. The use of a sliding double gear in the headstock enables stepless spindle speed regulation in two ranges:

  • 30-800 rpm
  • 120-3000 rpm

This solution allows for optimal use of drive power and maintenance of proper cutting conditions.

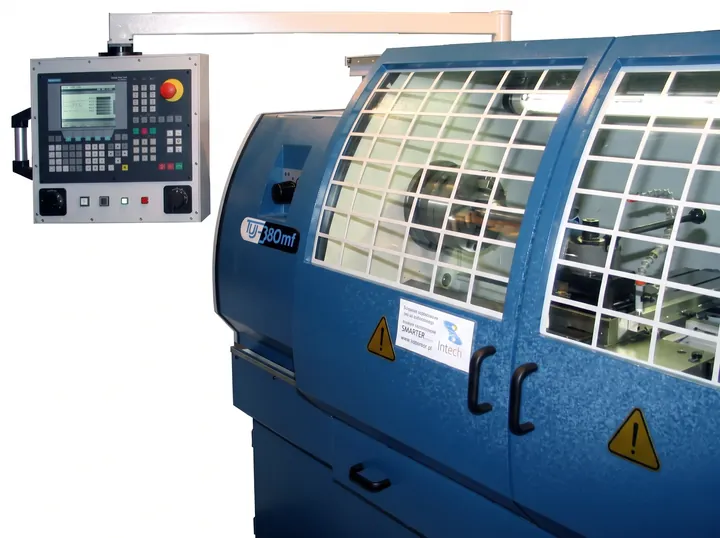

The lathe is equipped with a SINUMERIK 828 or FANUC Oi Mate TF control system, featuring manual electronic handwheels. Synchronization of spindle rotation with the Z-axis drive allows for the production of all types of threads with any pitch.

Machining capabilities include:

  • turning
  • grooving and undercutting
  • threading
  • drilling and countersinking
  • boring
  • taper turning
  • spherical surface turning

The machine is equipped with a HASSE quick-change tool post. The TUJ-380 CNC version with a PRAGATI multi-tool turret is also available in the offer.

applications // process // part

Applications

Typical selection scenarios for this model in FMT machine parks - no universal “does everything” claims.

  • Workshop, overhauls and small-batch work over the bed / between centres
  • Universal and MEF machining in one TUJ construction family
  • Part-based selection with datasheet, DTR and factory leasing

parameters // dimensions // drive

Technical parameters

Full catalogue table for this model - values from the FMT technical sheet.

Characteristic dataUnitParameter
Centre distance mm 1025
Turning length in chuck mm 1000
Swing over bed mm 380
Swing over cross slide mm 210
Bed width (top) mm 260
Spindle nose to PN-ISO-702-1 A6
Spindle taper (metric) mm B70
Spindle speed range rpm 30-3000
Main drive motor power kW 7,5
Tailstock quill travel mm 130
Tailstock quill taper Morse’a 4
Mass

documentation // dtr // pdf

Catalogue sheet

Download manufacturer documentation for selection, commissioning and maintenance.

Catalogue sheet (PDF)

series // compare // select

Other models in the series

model // news // source

From this model’s deployments

A news item linked to this model - post context, the catalogue machine, and the full article.

  1. 01 Context The TUJ-380MF combines a compact CNC lathe with the rigidity of a classical cast-iron bed.
  2. 02 Solution TUJ-380MF
  3. 03 Source — TUJ-380MF lathe: agility in a rigid frame · Read article

fairs // deployments // shop floor

Model case studies and news

Selected posts linked to this offer - real FMT events and deployments, not tag farms.

All news

manufacturer // config // service

Model FAQ

Short answers to common buying questions - no fake ratings or empty blocks.

How do universal, MEF and CNC TUJ lathes differ?

Universal TUJ covers classic swing and between-centres work. MEF keeps frame stiffness with more agile control. CNC (SINUMERIK / FANUC) suits repeatable programmes and automation - choice depends on the part, batch size and cutting discipline.

Where are TUJ lathes manufactured?

TUJ is the line of Polish manufacturer FMT Tarnów - machines are built and prepared in Wierzchosławice, sold and supported under the FMT brand.
