LZ 400S CNC Lathe

precision // machining // fmt standard

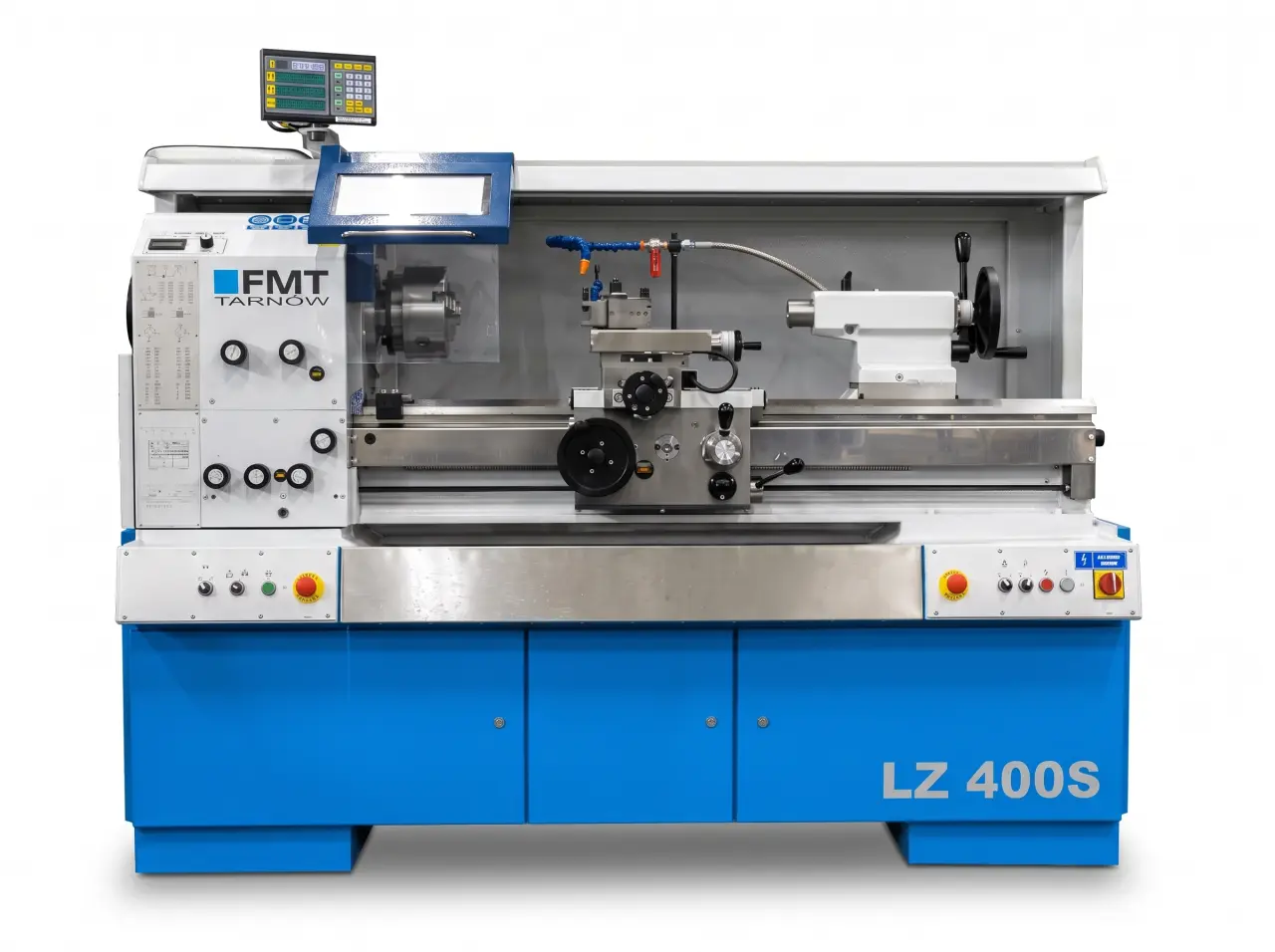

LZ 400S CNC Lathe

construction // process

Technical description

The LZ-400S lathe is designed for a wide range of turning operations while maintaining high machining accuracy. It enables processes such as:
  • turning
  • facing
  • boring
  • taper turning
  • drilling
  • thread cutting: metric, imperial, modular, and Diametral Pitch

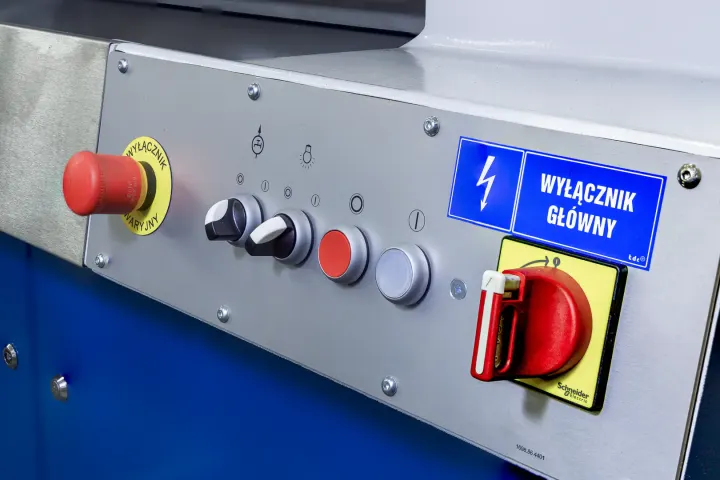

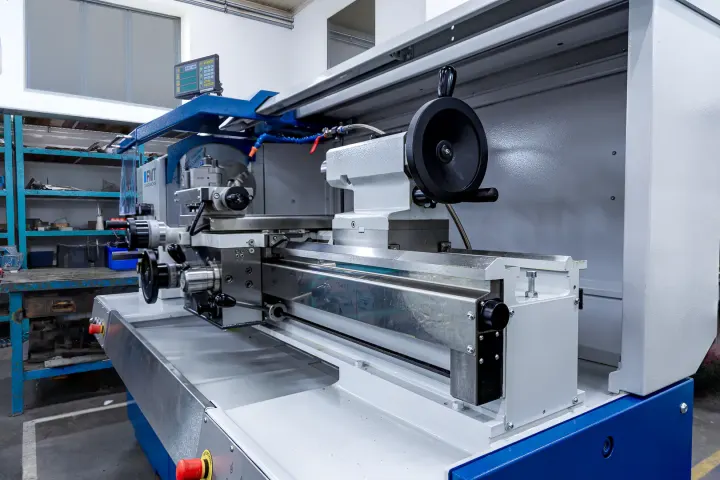

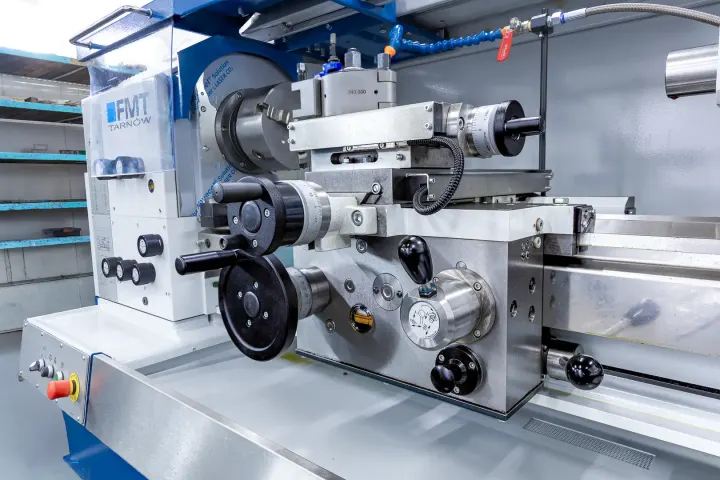

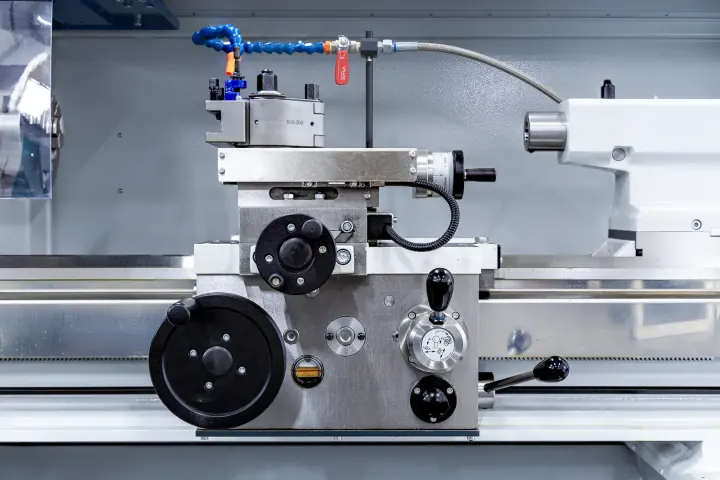

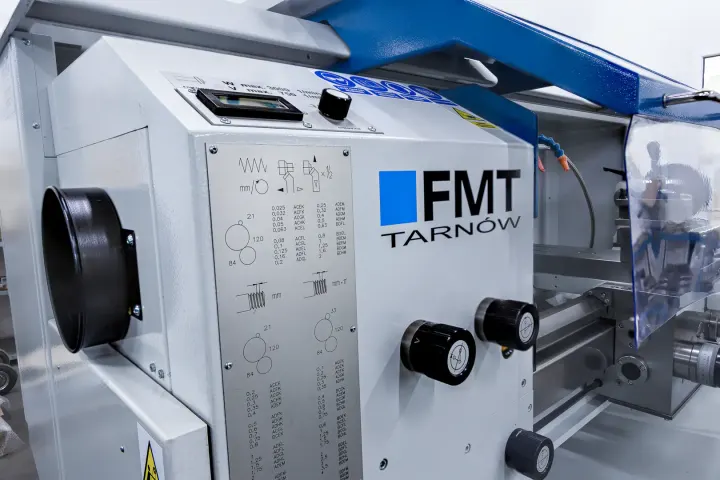

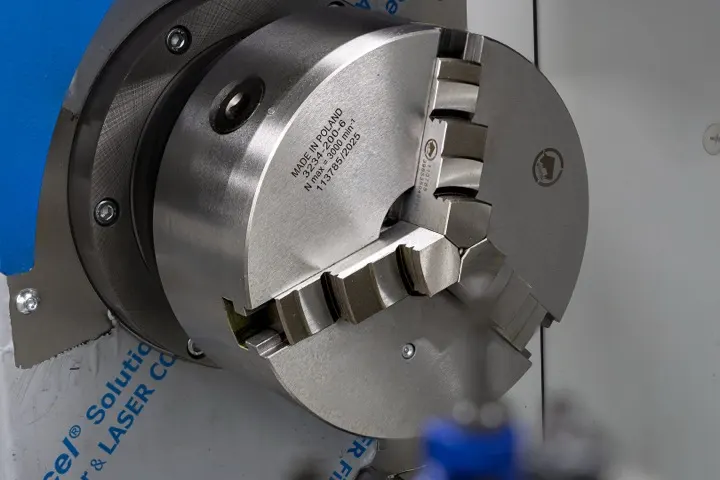

The application of a two-range, infinitely variable spindle drive ensures a wide range of spindle speeds, enabling the selection of optimal cutting parameters and efficient use of motor power. The machine offers a wide range of feeds and thread pitches. It is adapted for machining workpieces mounted both in a chuck and between centres. The lathe is equipped with a leadscrew and feed rod guard as well as a full-length rear chip guard. The construction, based on a hardened cast iron bed permanently mounted on a welded steel base, ensures high rigidity of the system. The base integrates a removable chip tray, a cooling system with a fluid tank, and storage space for tools and equipment. The electrical cabinet houses the power supply and control switchgear.

applications // process // part

Applications

Typical selection scenarios for this model in FMT machine parks - no universal “does everything” claims.

  • Day-to-day workshop turning and support production
  • One-off and small-batch parts without complex CNC programs
  • Fast shop-floor adoption with FMT DTR documentation

parameters // dimensions // drive

Technical parameters

Full catalogue table for this model - values from the FMT technical sheet.

Characteristic dataUnitValue
Centre distance mm 1000
Turning length in chuck mm 1000
Swing over bed mm 390
Swing over cross slide mm 225
Bed width (top) mm 260
Max. workpiece mass between centres kg 200
Spindle nose to DIN 55027 C6
Spindle bore diameter mm 62
Spindle internal taper DIN 228 ME70
Spindle speed range rpm 30–3000
Main drive motor power kW 7,5
Tailstock quill travel mm 110
Tailstock quill diameter mm 60
Tailstock quill taper Morse'a 4
Longitudinal feed range mm/obr. 0,025–2,0
Cross feed range mm/obr. 0,012–1,0
Mass

documentation // dtr // pdf

Technical and operating documentation (DTR)

Download manufacturer documentation for selection, commissioning and maintenance.

Download DTR (PDF) Catalogue sheet (PDF)

equipment // options

Equipment

Optional

  1. Fixed sliding steady rest (Ø 10-100 mm)
  2. Fixed roller steady rest (Ø 10-100 mm)
  3. Following sliding steady rest (Ø 10-85 mm)
  4. Following roller steady rest (Ø 10-85 mm)
  5. 2-axis linear scale set
  6. 3-axis linear scale set
  7. Any equipment from the Bison Bial catalogue

model // news // source

From this model’s deployments

A news item linked to this model - post context, the catalogue machine, and the full article.

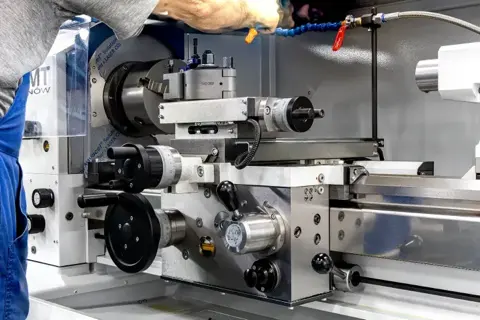

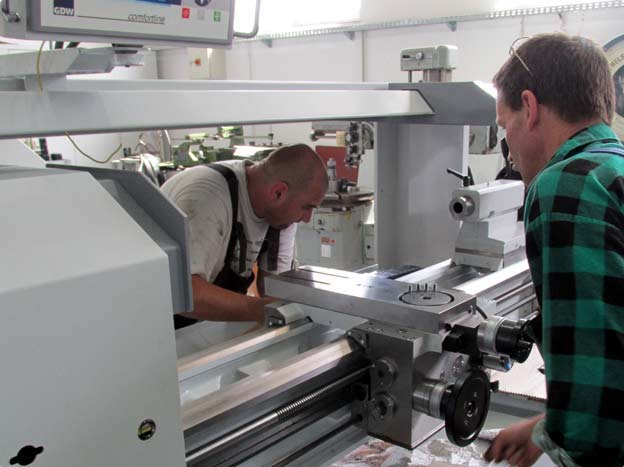

  1. 01 Context The LZ-400S universal lathe is a foundation of classical cutting, built around a heavy cast-iron bed.
  2. 02 Solution LZ 400S CNC Lathe
  3. 03 Source — LZ-400S universal lathe · Read article

fairs // deployments // shop floor

Model case studies and news

Selected posts linked to this offer - real FMT events and deployments, not tag farms.

All news

manufacturer // config // service

Model FAQ

Short answers to common buying questions - no fake ratings or empty blocks.

What is the LZ-400S for?

LZ-400S is a universal workshop lathe from the LZ line - deployments and case studies (on-time delivery) are covered in FMT news.

How do LZ lathes differ from TUJ?

LZ is FMT’s workshop line for day-to-day production and deployments (incl. LZ-400S). TUJ covers a wider universal / MEF / CNC range. Choice depends on the part and workload.

Are LZ lathes manufactured in Poland?

Yes - LZ is part of Polish manufacturer FMT Tarnów’s offer. Machines are built and prepared at the Wierzchosławice plant.
