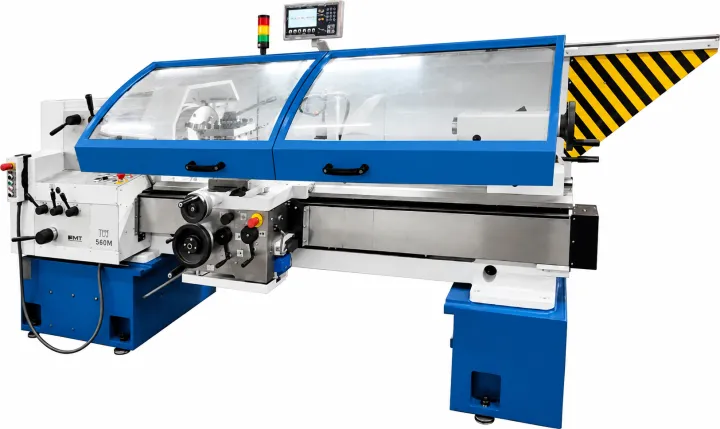

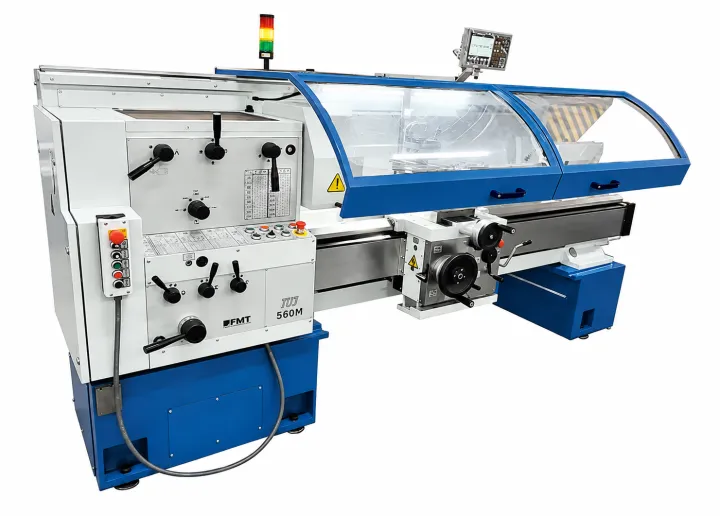

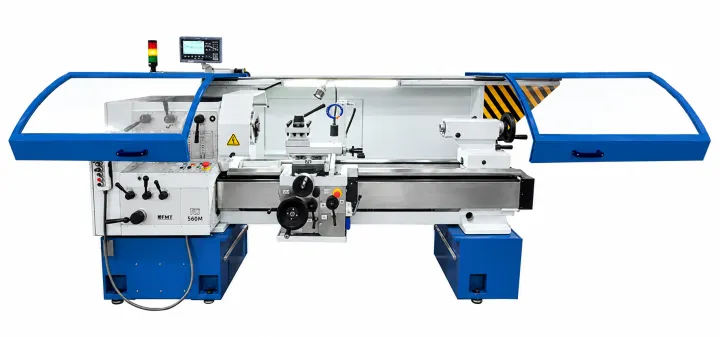

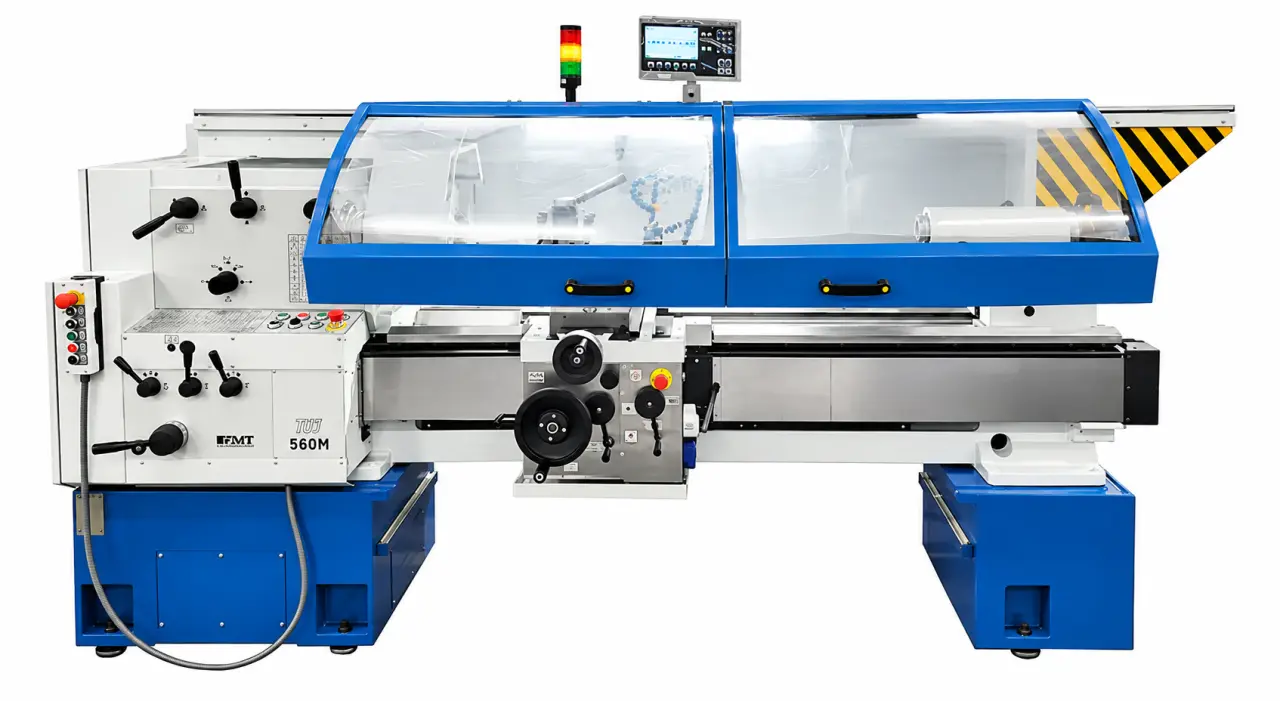

TUJ-560M / TUJ-630M

precision // machining // fmt standard

TUJ-560M / TUJ-630M

construction // process

Technical description

High motor power and a rigid machine structure allow for turning using high-speed steel, cemented carbide, and ceramic indexable insert tools. The TUJ-560M and TUJ-630M lathes feature electromagnetic clutches and a backlash eliminator.

A wide spindle speed range enables economical operation for both roughing and finishing operations on cast iron, steel, and non-ferrous metals.

The universal feed gearbox and machine kinematics allow for cutting a broad range of threads:

  • metric
  • inch
  • module
  • diametral pitch

The standard version of the TUJ-560M and TUJ-630M lathes is built in the metric system with a C11 spindle nose.

applications // process // part

Applications

Typical selection scenarios for this model in FMT machine parks - no universal “does everything” claims.

  • Workshop, overhauls and small-batch work over the bed / between centres
  • Universal and MEF machining in one TUJ construction family
  • Part-based selection with datasheet, DTR and factory leasing

parameters // dimensions // drive

Technical parameters

Full catalogue table for this model - values from the FMT technical sheet.

Characteristic dataUnitTUJ-560M L=1500TUJ-560M L=2000TUJ-630M L=3000
Centre distance mm 1440 1940 2940
Turning length in chuck mm 1350 1850 2850
Swing over bed mm 560 630
Swing over cross slide mm 370 440
Gap swing * mm 800 870
Bed width (top) mm 370
Spindle nose to PN-ISO-702-3 C11
Spindle taper (metric) mm 100
Spindle speed range rpm 20-1600
Main drive motor power kW 11
Tailstock quill travel mm 180
Tailstock quill taper Morse’a 5B
Mass

documentation // dtr // pdf

Technical and operating documentation (DTR)

Download manufacturer documentation for selection, commissioning and maintenance.

Download DTR (PDF)

equipment // options

Equipment

Optional

  1. Steady rest with plain jaws (Ø 15-250 mm)
  2. Steady rest with roller jaws (Ø 10-150 mm)
  3. Follow rest (Ø 15-250 mm)
  4. End gear change gears - metric system, tooth counts: Z=48, 54, 63, 76
  5. 4-jaw independent chuck Ø400 with wrench
  6. Custom equipment from the Bison Bial catalog or other manufacturers
